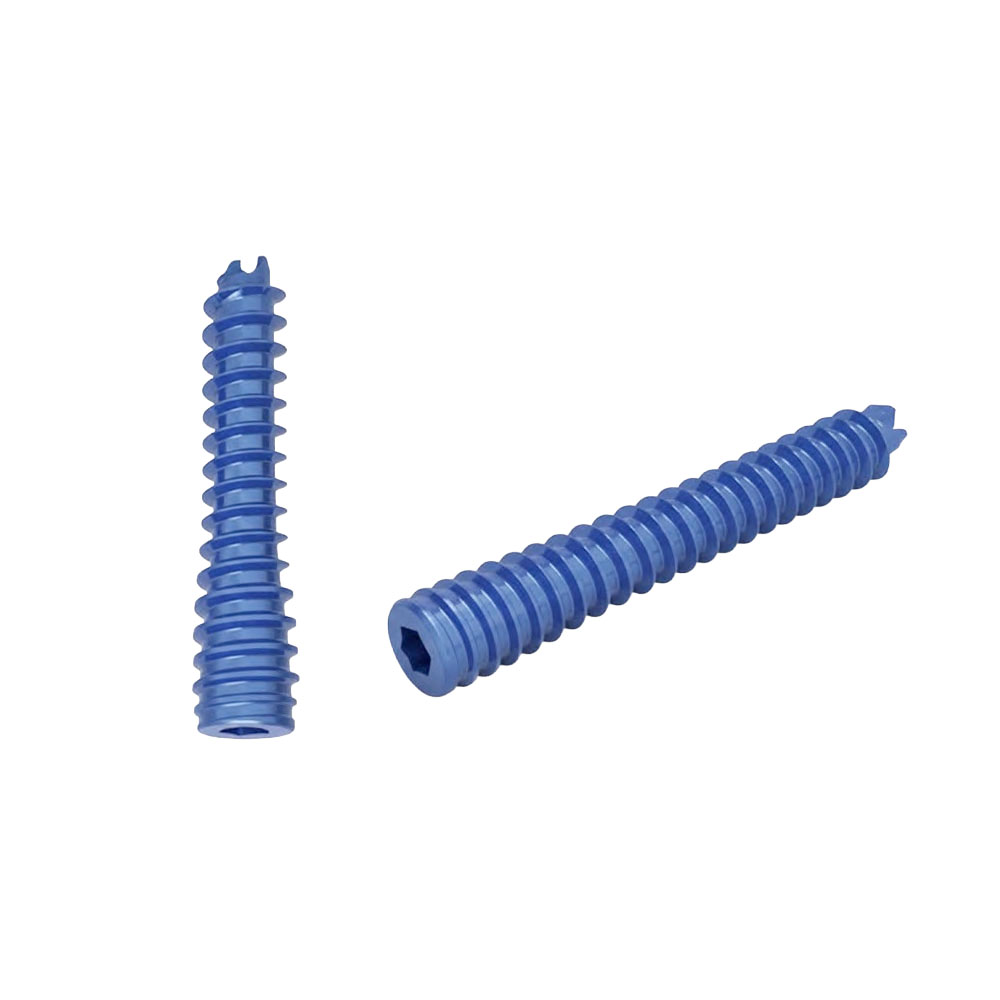

Conical Barouk screw
Ask about this system →Our team can help with product information and availability.
DESCRIPTION
Headless screw for internal fixation and bone compression, inserted over a guide pin.
Features
Fully threaded body, conical cortical thread and conical tip. Material: titanium. Published versions: Ø 2.7 / 3.5 / 4 mm. The description of the Ø 3.5 mm model indicates lengths from 20 to 60 mm and other lengths on request.
CONICAL BAROUK SCREW Ø 2.7+
| CODE | LONG |
|---|---|
| 22902012B | 12 MM |
| 22902014B | 14 MM |
| 22902016B | 16 MM |
| 22902018B | 18 MM |
| 22902020B | 20 MM |
| 22902022B | 22 MM |
| 22902024B | 24 MM |
| 22902026B | 26 MM |
| 22902028B | 28 MM |
| 22902030B | 30 MM |
| 22902032B | 32 MM |
CONICAL BAROUK SCREW Ø 3.5+
| CODE | LONG |
|---|---|
| 142902010B | 10 MM |
| 142902012B | 12 MM |
| 142902014B | 14 MM |
| 142902016B | 16 MM |
| 142902018B | 18 MM |
| 142902020B | 20 MM |
| 142902022B | 22 MM |
| 142902024B | 24 MM |
| 142902026B | 26 MM |
| 142902028B | 28 MM |
| 142902030B | 30 MM |
| 142902032B | 32 MM |
| 142902034B | 34 MM |
| 142902036B | 36 MM |
| 142902038B | 38 MM |
| 142902040B | 40 MM |
| 142902042B | 42 MM |
| 142902044B | 44 MM |
| 142902046B | 46 MM |
| 142902048B | 48 MM |
| 142902050B | 50 MM |
| 142902052B | 52 MM |
| 142902054B | 54 MM |
| 142902056B | 56 MM |
| 142902058B | 58 MM |
| 142902060B | 60 MM |
CONICAL BAROUK SCREW Ø 4+
| CODE | LONG |
|---|---|
| 43402010B | 10 MM |
| 43402012B | 12 MM |
| 43402014B | 14 MM |
| 43402016B | 16 MM |
| 43402018B | 18 MM |
| 43402020B | 20 MM |
| 43402022B | 22 MM |
| 43402024B | 24 MM |
| 43402026B | 26 MM |
| 43402028B | 28 MM |
| 43402030B | 30 MM |
| 43402032B | 32 MM |
| 43402034B | 34 MM |
| 43402035B | 35 MM |
| 43402036B | 36 MM |
| 43402038B | 38 MM |
| 43402040B | 40 MM |
| 43402042B | 42 MM |
| 43402044B | 44 MM |
| 43402045B | 45 MM |
| 43402046B | 46 MM |
| 43402048B | 48 MM |
| 43402050B | 50 MM |
| 43402052B | 52 MM |
| 43402054B | 54 MM |
| 43402055B | 55 MM |
| 43402056B | 56 MM |
| 43402058B | 58 MM |
| 43402060B | 60 MM |
